Compression cylinder

Compression cylinder repair

Product Description：

The inner wall of the compression cylinder is severely worn during long-term use and cannot work normally. The inner wall of the compression cylinder is strengthened by laser cladding, which greatly increases the service life of the product and forms a complete new product manufacturing process to form new product mass production. Under market share.

Cladding effect:

1) The unique inner wall laser processing technology uses a unique inner diameter nozzle and laser processing system for processing.

2) Two different process strengthening schemes of laser quenching and laser cladding are adopted, which can adapt to a variety of different types of compression cylinders.

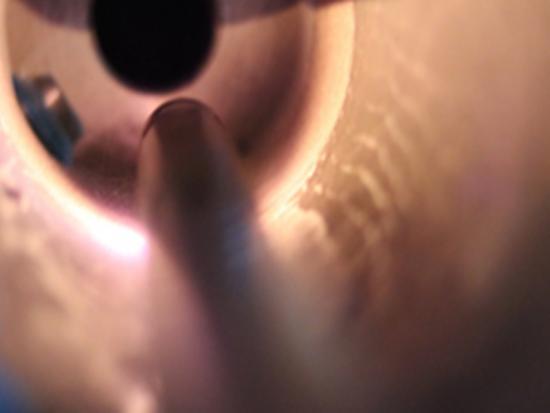

The inner wall of the compression cylinder has a small diameter and a large depth. The traditional laser processing technology cannot process the inner wall. However, the inner diameter nozzle designed by our company can complete laser cladding and laser quenching.

Feature parameters of laser head for laser bore repair:

1) The minimum cladding inner hole diameter is 60mm

2) The maximum depth is 1000mm

3) Adjustable working laser spot size: 0.2mm～3.2mm

4) Maximum linear speed 100mm/s
