drilling stabilizer

Drilling stabilizer repairing

Product description：

The outer surface of the spiral main body of the drilling tool stabilizer is mainly attached to the good wall, and relative movement occurs during normal operation. The wear of the drilling tool due to the hardness of the good wall also destroys the structure of the stabilizer, causing the outer wall of the stabilizer to become thinner. The load capacity cannot be subjected to the normal force, and the surface of the stabilizer will be scratched due to work. Under this condition, the performance of failure will occur and the function of the control device will be weakened. Therefore, improving the wear resistance of the stabilizer will increase the service life of the drilling tool.

WILA Laser uses a laser beam to melt the coating material and thin-layer base material. After rapid solidification, it forms a cladding layer with extremely low dilution and roughly the same composition as the coating, which can form alloy cladding on the surface of the drill stabilizer Layer to improve the wear resistance, corrosion resistance, heat resistance, and oxidation resistance of the surface of the substrate material. It can also restore the surface of the worn drill stabilizer to size, homogeneity, and performance.

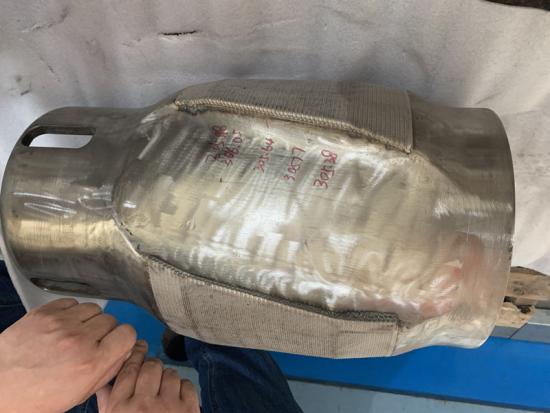

The drill stabilizer processed by

laser cladding repair technology has less heat input during cladding, has little effect on the overall structure of the drill stabilizer, and will not cause the danger of deformation of the drill stabilizer, and the laser cladding layer It is very flat, not only can restore the external dimensions of the damaged parts of the surface, but also improves the surface corrosion resistance and wear resistance, thereby prolonging the service life and saving the cost of purchasing new products.

OEM Service：

By uniformly distributing cemented carbide inlaid blocks or cast tungsten carbide particles in the nickel-based or cobalt-based binder phase, WILA is committed to providing solutions for the harsh working conditions of the petroleum industry and serving the key components and general structure of the oil and gas industry Parts and design solutions.

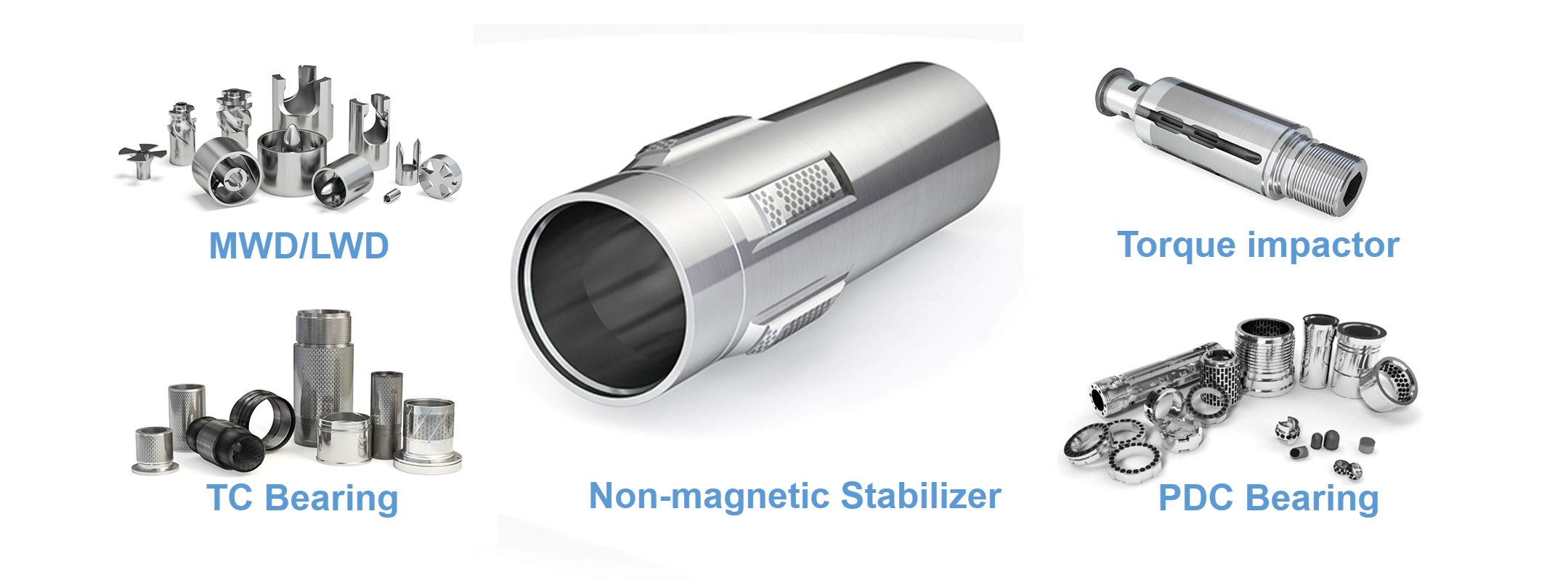

WILA’s engineer team has 14 years of experience and provides customers with a complete set of solutions in terms of service life, cost, safety, etc. under different working conditions in the fields of oil and natural gas. The main application types include MWD/LWD tools, drilling tools, and completion tools
